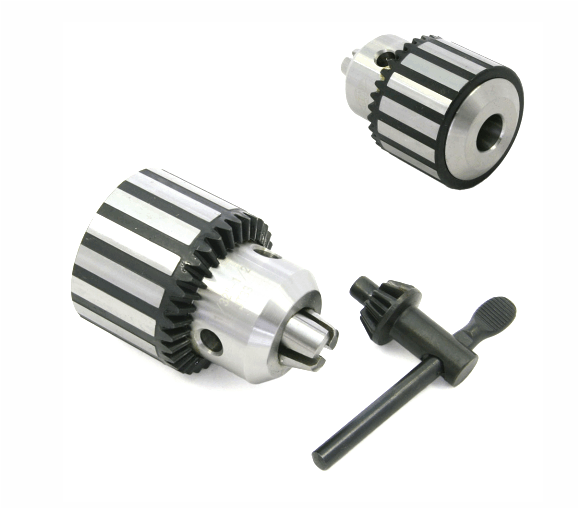

CE-1400 : Drill Chuck with DIN Taper Mount |
|
|
Drill chucks are specially designed for drilling machines, lathes, milling machines & wood working machines. The workmanship ensure high grade of accuracy, maximum life with powerful gripping.
Special Features :
- Bodies are made from special alloy steel & taper jaw holes are precision bored & reamed.
- Sleeve, jaws & gear rings are hardened & ground to lengthen the life of the chuck.
- Keys are made of special steel, hardened & naught to zinc plated.
- Holding capacity 0 mm to high end diameter bits.
|
|
|
|
|
Mount
|
Size in MM
|
Size in Inches
|
|
C16
|
13MM
|
1/2"
|
|
C18
|
16MM
|
5/8"
|
|
C22
|
20MM
|
3/4"
|
|
C24
|
25MM
|
1"
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

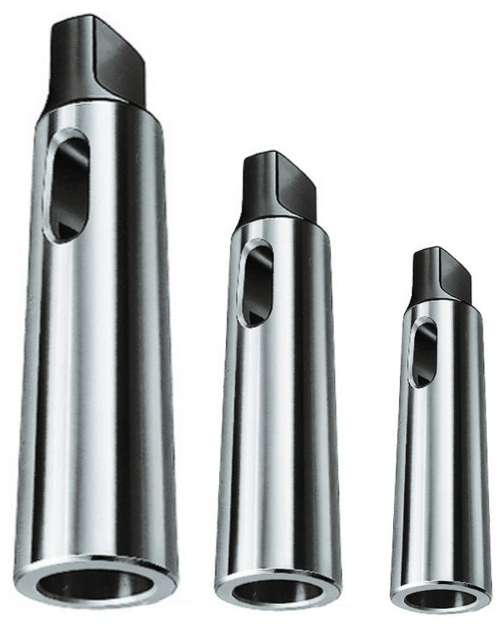

CE-1401 : Drill Sleeves |
|
|
A Grade Hardened & Ground Finish / Workshop Grade |
|
|
|
|
Morse Taper Outside (MT)
|
Morse Taper Inside
|
Overall Length
|
|
2
|
1
|
92
|
|
3
|
1
|
99
|
|
3
|
2
|
112
|
|
4
|
1
|
124
|
|
4
|
2
|
124
|
|
4
|
3
|
140
|
|
5
|
1
|
156
|
|
5
|
2
|
156
|
|
5
|
3
|
156
|
|
5
|
4
|
171
|
|
6
|
2
|
218
|
|
6
|
3
|
218
|
|
6
|
4
|
218
|
|
6
|
5
|
218
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

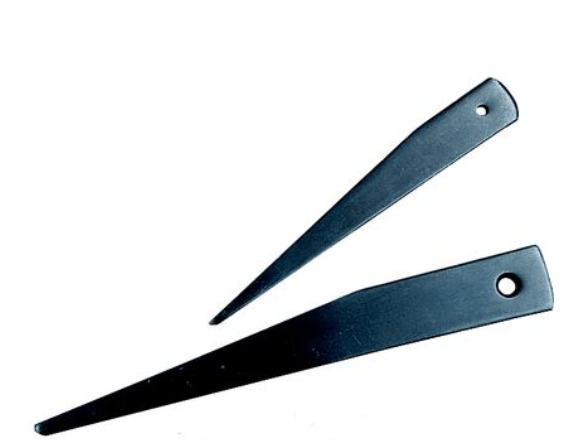

CE-1402 : Drill Drift |
|
|
Very useful for removing taper shanks reamers, drills from sleeves and sockets. Drop Forged from Carbon Steel and hardened to ensure longer life, Black Oxidized finish. |
|
|
|
|
Morse Taper
|
|
MT 0
|
|
MT 1
|
|
MT 2
|
|
MT 3
|
|
MT 4
|
|
MT 5
|
|
MT 6
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

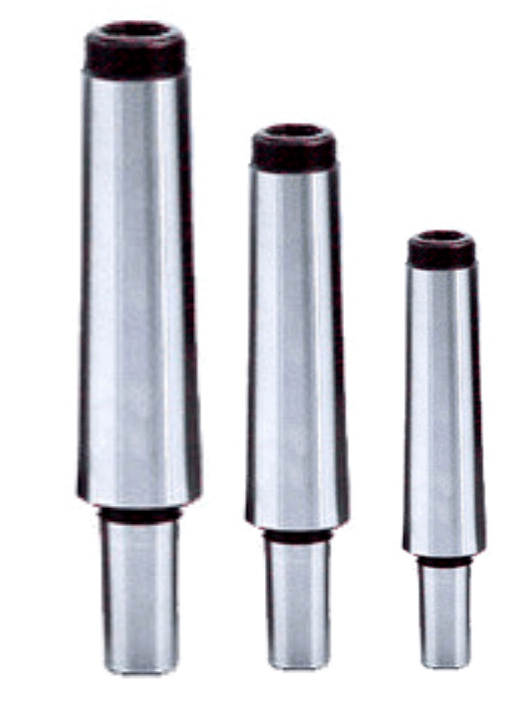

CE-1403 : Morse Taper Arbor |
|
|
Manufactured from case hardened steel and precision ground all over. Drawbar threaded. |
|
|
|
|
Morse Taper (MT)
|
Chucks Taper
|
Draw Bar Thread
|
|
1
|
JT1
|
1/4 BSW
|
|
1
|
JT1
|
M6
|
|
2
|
JT6
|
3/8 BSW
|
|
2
|
JT6
|
M10
|
|
2
|
JT33
|
3/8BSW
|
|
2
|
JT33
|
M10
|
|
2
|
JT3
|
3/8BSW
|
|
2
|
JT3
|
M10
|
|
2
|
B16
|
M10
|
|
3
|
JT6
|
3/8BSW
|
|
3
|
JT6
|
M10
|
|
3
|
B16
|
M10
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

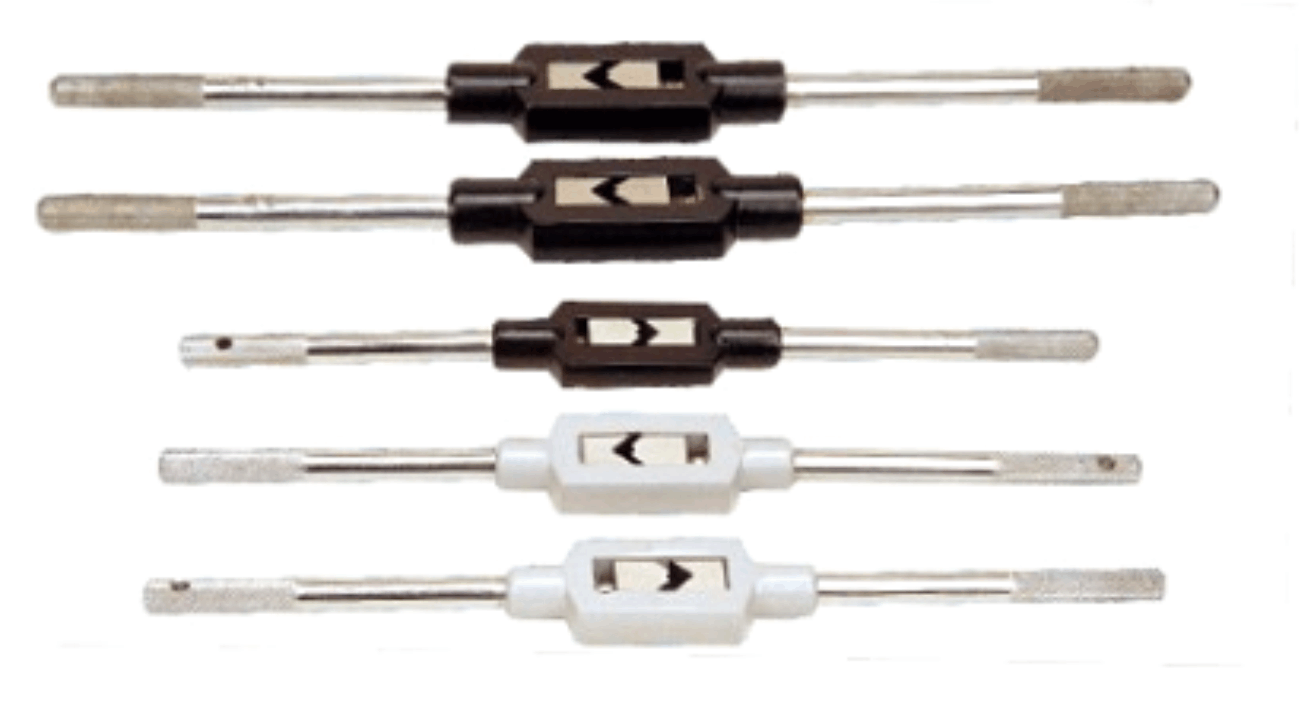

CE-1404 : Tap Wrench Handle |
|
|
Zinc die cast body & Steel handle with hardened jaws |
|
|
|
|
Size (Inch)
|
Size (MM)
|
Qty./Crtn. (Pcs)
|
|
1/4
|
6
|
144
|
|
3/8
|
10
|
72
|
|
1/2
|
12
|
60
|
|
3/4
|
18
|
40
|
|
1
|
25
|
20
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

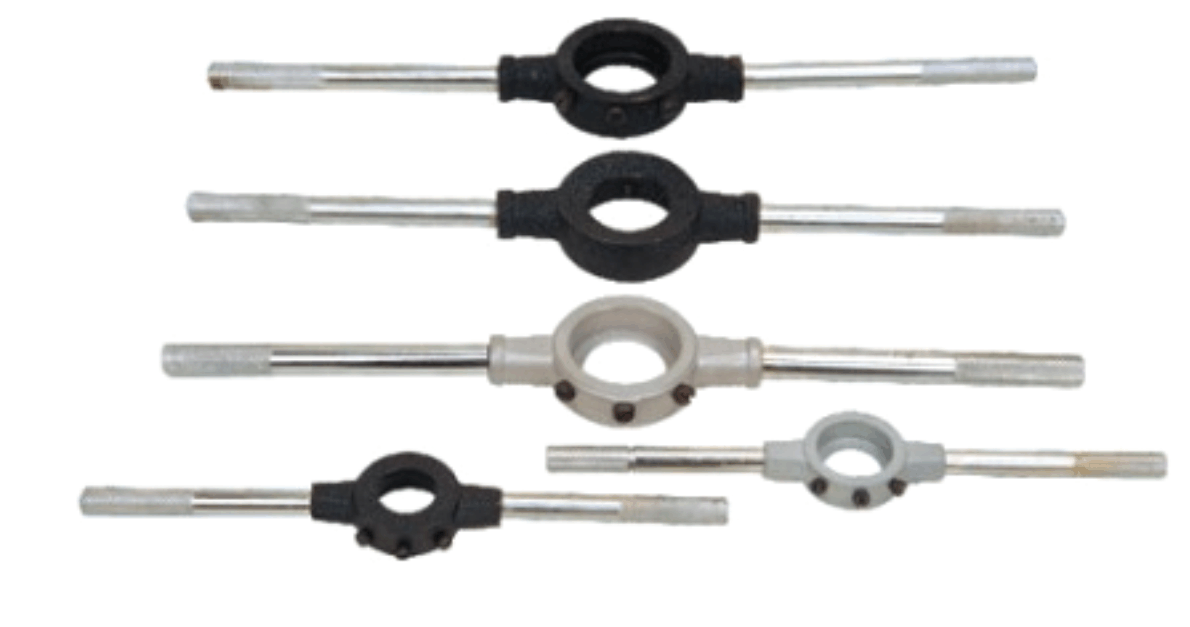

CE-1405 : Round Die Handle |
|
|
Zinc die cast body with steel handle |
|
|
|
|
Size (Inch)
|
Size (MM)
|
Qty./Crtn. (Pcs)
|
|
13/16
|
20
|
216
|
|
1
|
25
|
192
|
|
1.1/2
|
35
|
60
|
|
2
|
50
|
24
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

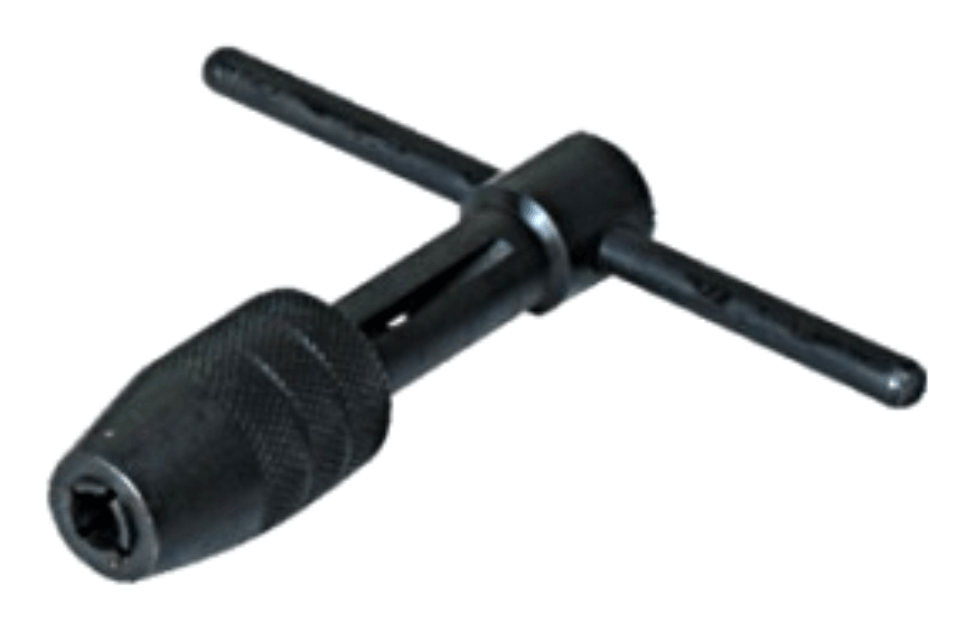

CE-1406 : T-Type Wrench Solid Jaws |
|
|
|
|
|
|
|
Capacity (Inch)
|
Length Long Handle (Inch)
|
Qty./Crtn. (Pcs)
|
|
1/16-3/16
|
4, 6, 9, 12
|
72
|
|
5/32-1/4
|
4, 6, 9, 12
|
60
|
|
3/16-5/16
|
4, 6, 9, 12
|
60
|
|
1/4-1/2
|
4, 6, 9, 12
|
50
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

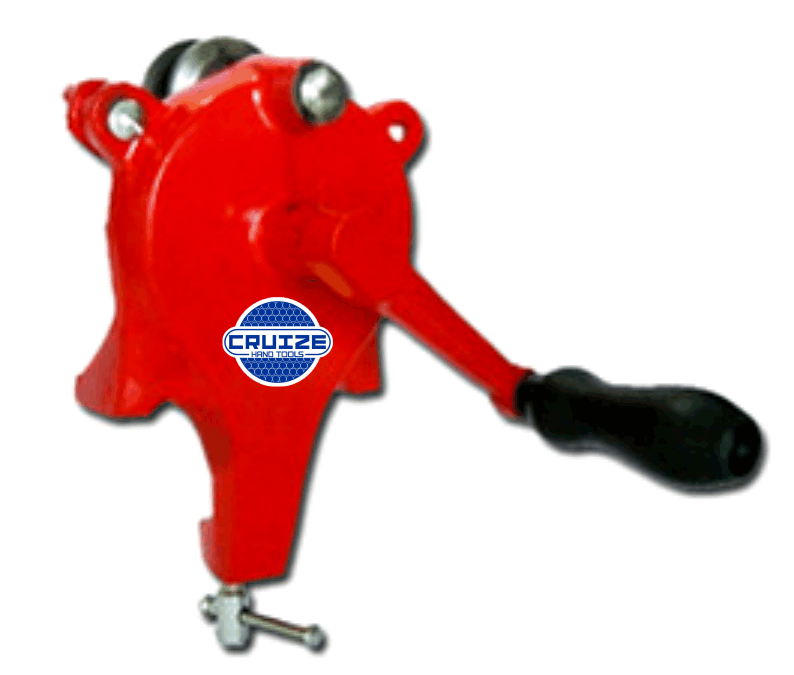

CE-1407 : Hand Bench Grinder ( Japan Type) |
|
|
Without Stone Body, C.I. Casting, Steel Spindle & Semi Steel Gear |
|
|
|
|
Specification
|
Size
|
|
A. HAND GRINDER SUITABLE GRINDER STONE 3"X1/2"X1/2"
|
3"
|
|
B. HAND GRINDER SUITABLE GRINDER STONE 4"X1/2"X1/2"
|
4"
|
|
C. HAND GRINDER SUITABLE GRINDER STONE 6"X3/4"X3/4"
|
6"
|
|
D. HAND GRINDER SUITABLE GRINDER STONE 8"X1"X1"
|
8"
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

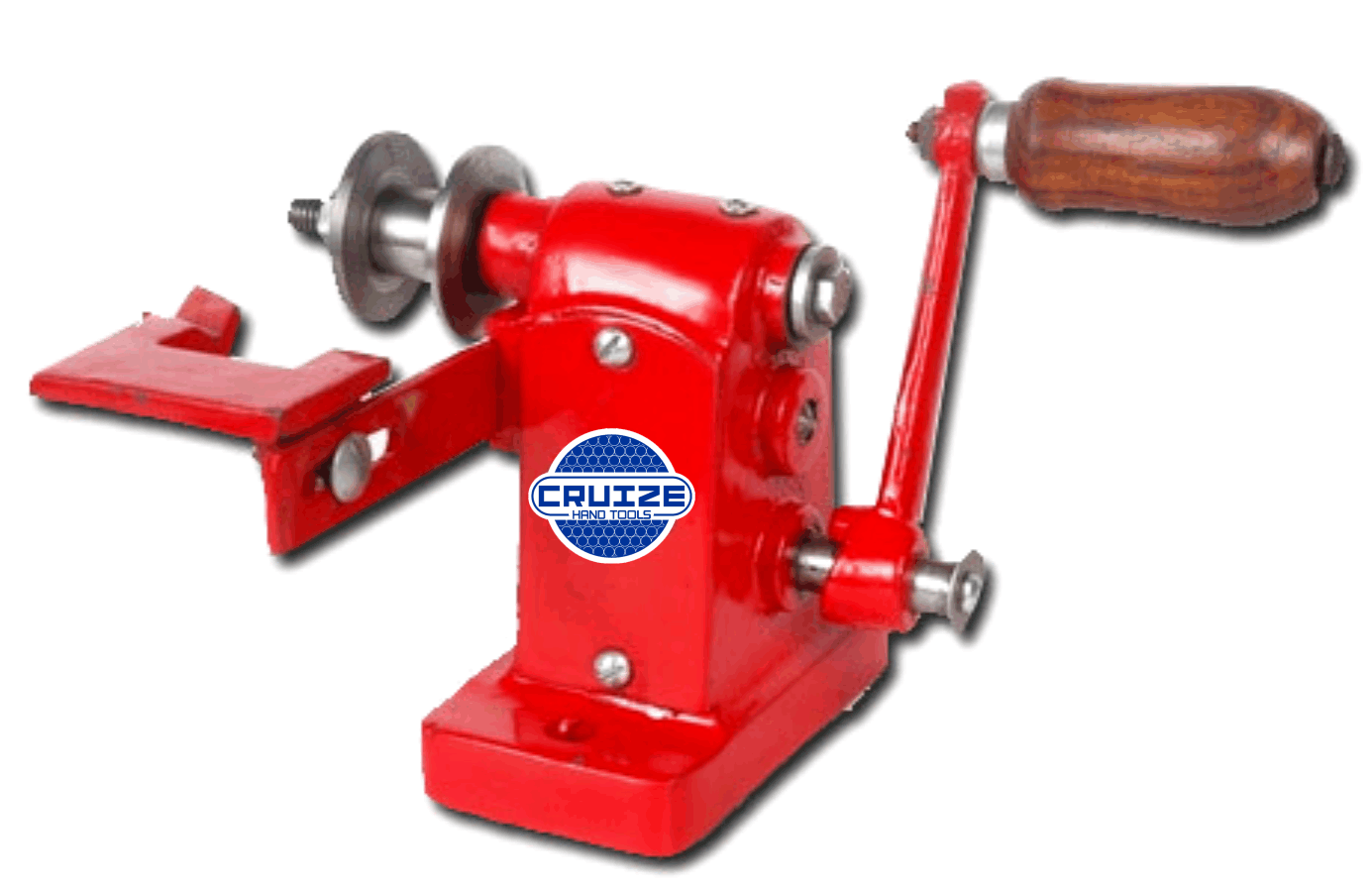

CE-1408 : Hand Bench Grinder ( Ixion Type) |
|
|
Without Stone Body, C.I. Casting, Steel Spindle & Semi Steel Gear |
|
|
|
|
Specification
|
Size
|
|
A. HAND GRINDER NORMAL SHAFT (SMALL ROD ) SUITABLE GRINDER STONE 6"X3/4"X3/4"
|
6"
|
|
B. HAND GRINDER LONG SHAFT (LONG ROD ) SUITABLE FOR GRINDING STONE & COIL BINDING 6"X3/4"X3/4"
|
6"
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

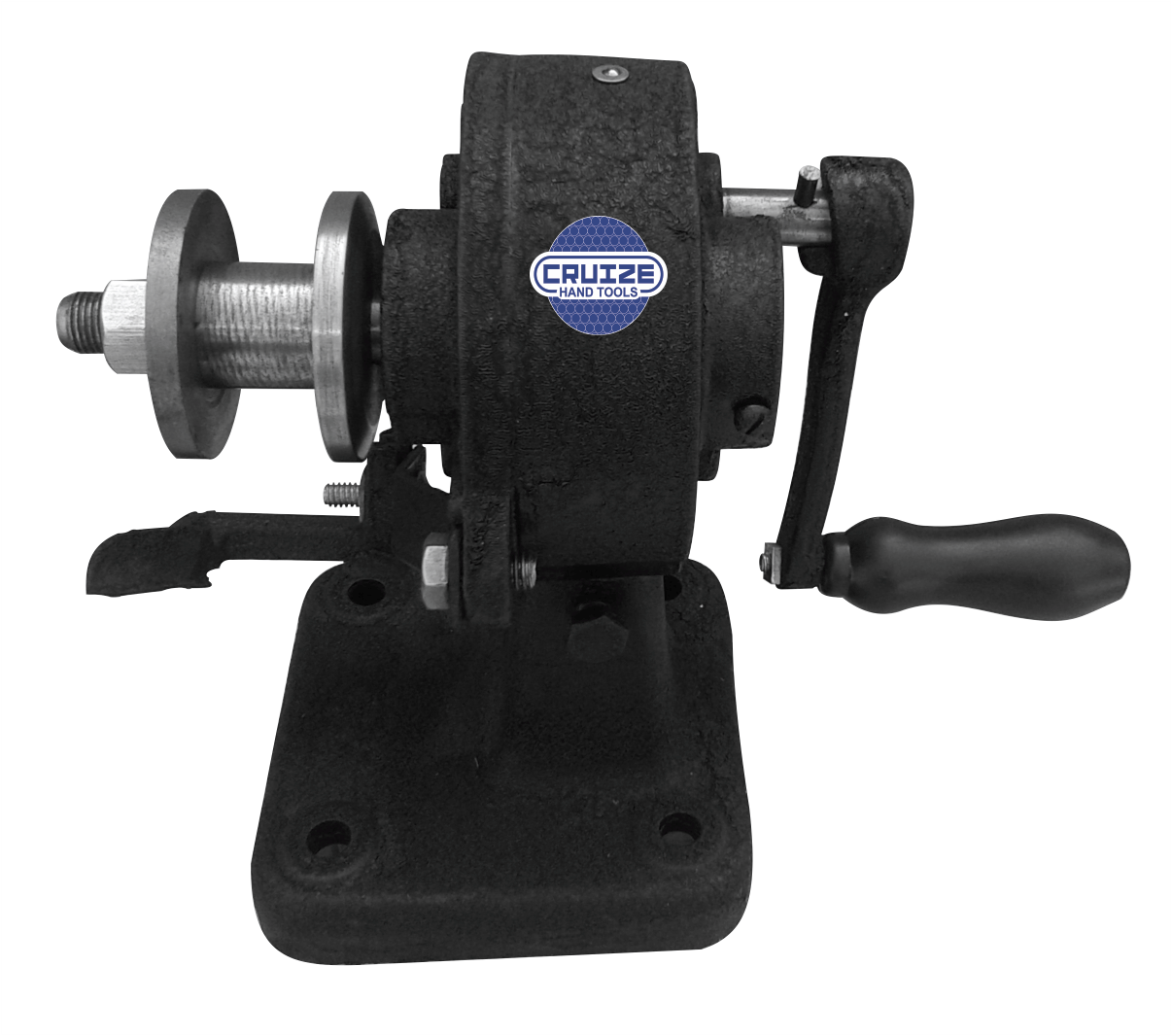

CE-1408 (A) : Hand Bench Grinder ( Ixion Type) Black |
|
|
Hand Grinder Ixion Fan Type- 8" (Black) with Bearing or without Bearing. Manual tool, which is widely used for the purpose of cutting, grinding and polishing. 6 Mild Steel gear as Mild Steel Gears operations are faster and with minimum noise. |
|
|
|
|
Specification
|
Size
|
|
A. With & Without Bearing
|
8"
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

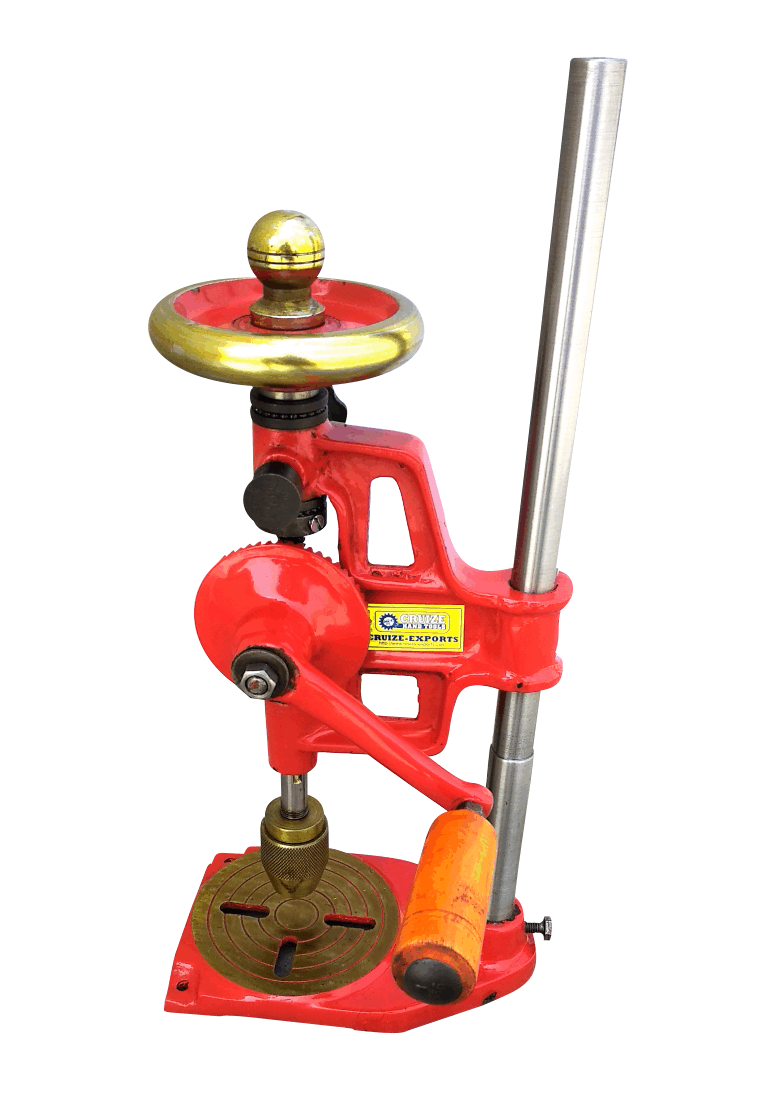

CE-1409 : Table Drill Machine ( Keen Type ) |
|
|
Hand Operated |
|
|
|
|
Size (Inch)
|
MM
|
|
1/2"
|
13
|
|
|
No.
|
Specifications
|
Inches
|
|
1.
|
Drilling Capacity
|
1/2
|
|
2.
|
Spindle Travel
|
2.1/4
|
|
3.
|
Column to Spindle Centre
|
4.1/2
|
|
4.
|
Height
|
20
|
|
5.
|
Column Dia
|
23MM
|
|
6.
|
Diameter of Wheel
|
5
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

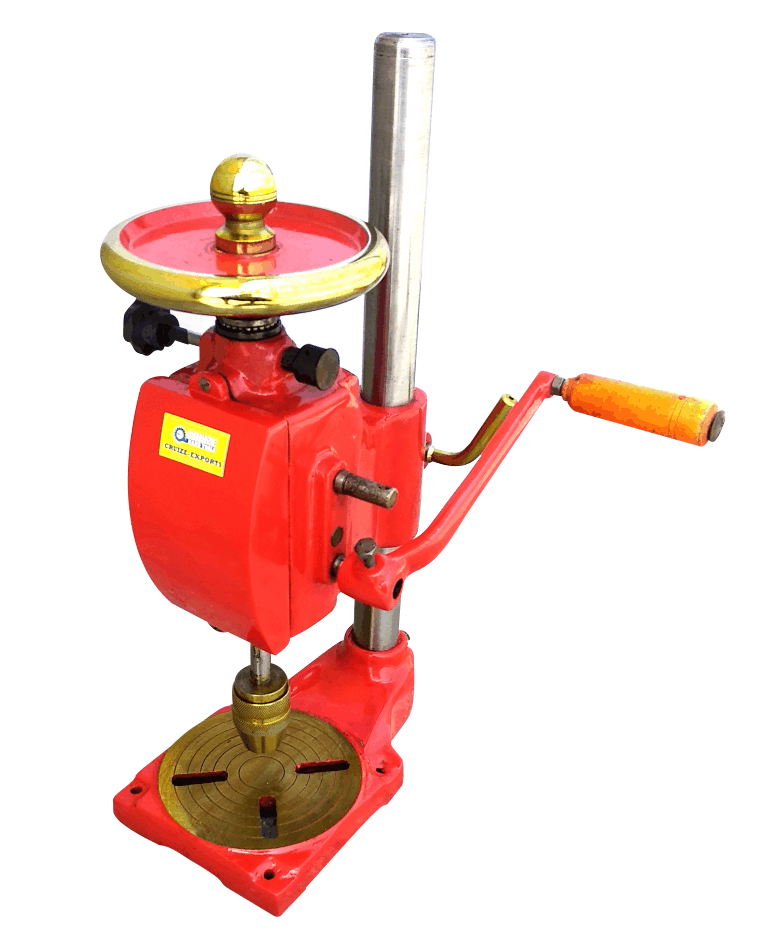

CE-1410 : Table Drill Machine ( Ixion Type) |
|
|
Bench Model, Hand Operated |
|
|
|
|
Size (Inch)
|
MM
|
|
5/8"
|
16
|
|
|
No.
|
Specifications
|
MM
|
Inches
|
|
1.
|
Drilling Capacity
|
16
|
5/8
|
|
2.
|
Spindle Travel
|
57
|
2.1/4
|
|
3.
|
Base of Chuck
|
238
|
9.1/2
|
|
4.
|
Column to Spindle Centre
|
138
|
5.1/5
|
|
5.
|
Wheel Diameter
|
170
|
6.3/4
|
|
6.
|
Column Diameter
|
41
|
1.1/2
|
|
7.
|
Column Height
|
525
|
22
|
|
7.
|
Gears 2 Bevel & 3 Straight gears
|
|
|
|
9.
|
Approx. Weight
|
23 Kgs.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

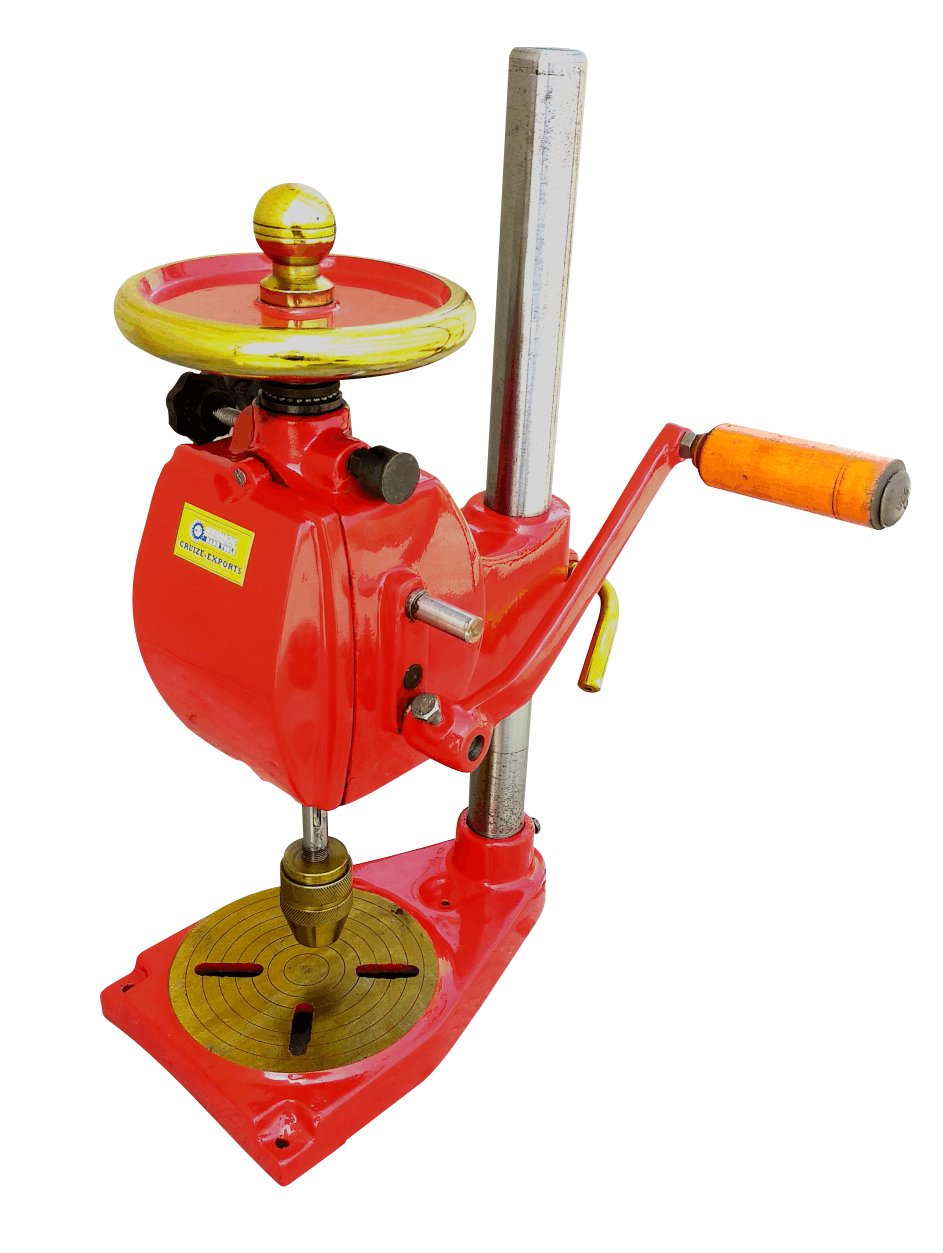

CE-1411 : Table Drill Machine (Jenco Type) |
|
|
Heavy Duty, Hand Operated |
|
|
|
|
Size (Inch)
|
MM
|
|
5/8"
|
16
|
|
|
No.
|
Specifications
|
MM
|
Inches
|
|
1.
|
Drilling Capacity
|
16
|
5/8
|
|
2.
|
Spindle Travel
|
57
|
|
|
3.
|
Base of Chuck Distance
|
238
|
|
|
4.
|
Column to Spindle Centre
|
138
|
|
|
5.
|
Wheel Diameter
|
170
|
|
|
6.
|
Column Diameter
|
41
|
|
|
7.
|
Column Height
|
525
|
|
|
7.
|
Gears 2 Bevel & Straight Gears
|
|
|
|
9.
|
Approx. Weight
|
25 Kgs.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
 |
|
